JJRC C8822 Frame Version 1/8 4WD Desert Off-Road Short Course Truck Assembly Kit

The JJRC C8822 Frame Version 1/8 4WD Desert Off-Road Short Course Truck Assembly Kit is a robust RC short course truck frame for hobbyists who love custom builds. Designed for desert and off-road terrains, this kit offers a durable chassis and suspension for thrilling off-road RC car performance. It’s perfect for enthusiasts ready to craft their own high-speed beast.

Performance

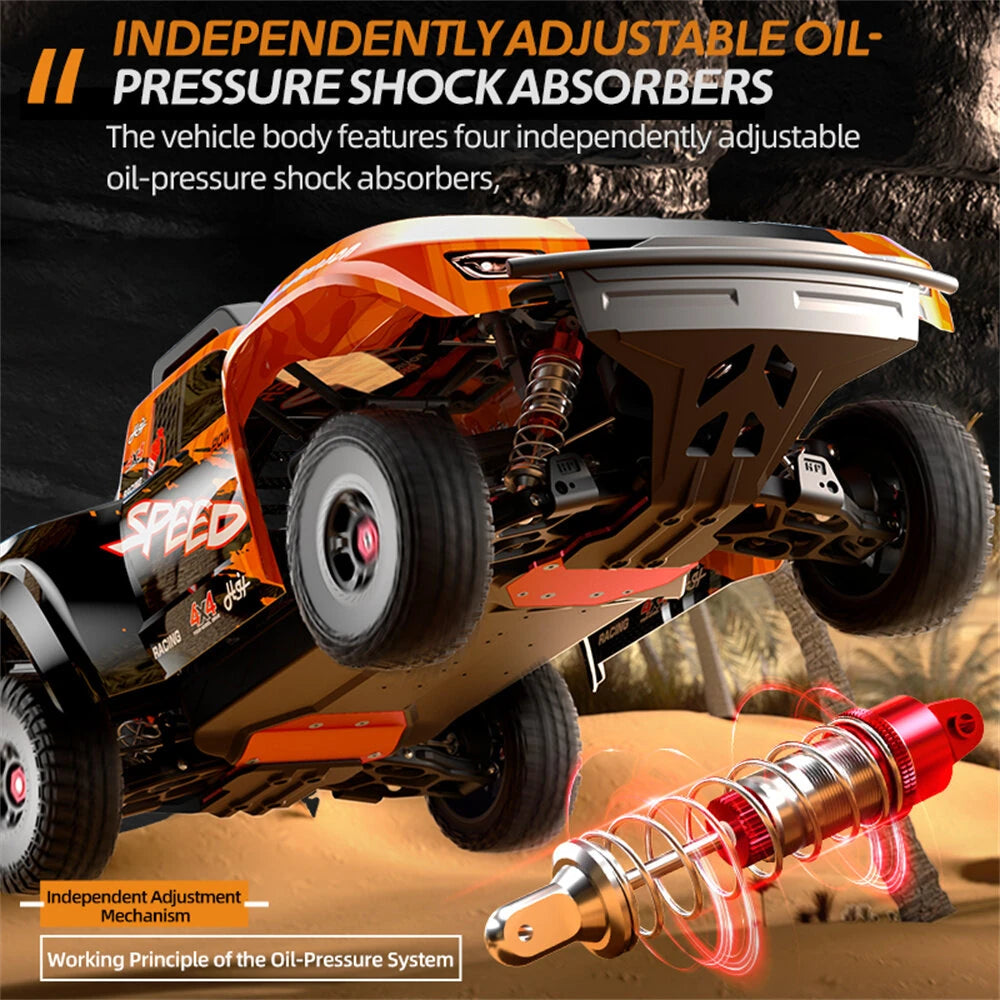

The C8822’s 4WD chassis features a triple differential setup with Gleason-style gears for balanced power on rough terrains. The 26mm CNC-machined aluminum oil-filled shocks provide smooth handling over jumps and bumps. Without a motor or ESC, performance depends on your choices—up to 90 km/h with a 6S brushless setup like the recommended F4274 motor. Some users note the plastic shell may flex under heavy crashes, but a thicker shell can be sourced. Dusty terrains may require frequent gear cleaning to maintain smoothness.

Design and Features

The unpainted polycarbonate shell mimics a desert truck with a tough, explosion-proof 160cc-thick design. Steel drive shafts and front CVD joints ensure durability, while the 680mm-long chassis supports big-air jumps. The kit lacks electronics, giving you freedom to customize with your preferred motor, ESC, and servo. No LED lights are included, but spaces allow aftermarket additions. The shell requires careful trimming to fit perfectly, and some hobbyists add metal braces for extra chassis strength.

Ease of Use and Maintenance

Assembly takes 6–8 hours, ideal for experienced builders, with a clear manual guiding the process. You’ll need a brushless motor, ESC, 35KG servo, 2.4GHz radio, receiver, 3S–6S LiPo battery, and charger (not included). Maintenance is straightforward with accessible differentials, but small screws may loosen over time. The sturdy frame handles rough use, making it forgiving for custom setups.

Special Notes: This is an Assembly Kit (frame version), requiring user assembly and additional components (motor, ESC, servo, 2.4GHz radio, receiver, 3S–6S LiPo battery, charger, tools, not included). Suitable for ages 14+ with upgrade options.

Specs & Features

• Scale: 1/8, desert truck-inspired design.
• Drive System: 4WD with triple differentials.
• Battery: Supports 3S–6S LiPo (not included).
• Transmitter: Requires 2.4GHz radio (not included).
• Tires: High-grip rubber, off-road.
• Shocks: 26mm CNC aluminum, oil-filled.
• Chassis: Reinforced plastic with steel driveshafts.
• Dimensions: Approximately 680mm length, 360mm width; Wheelbase 420mm.
• Weight: Approximately 3.5kg, without electronics.
